2022 Monachus 70 Fly for sale

2022 Monachus 70 Fly boat for sale

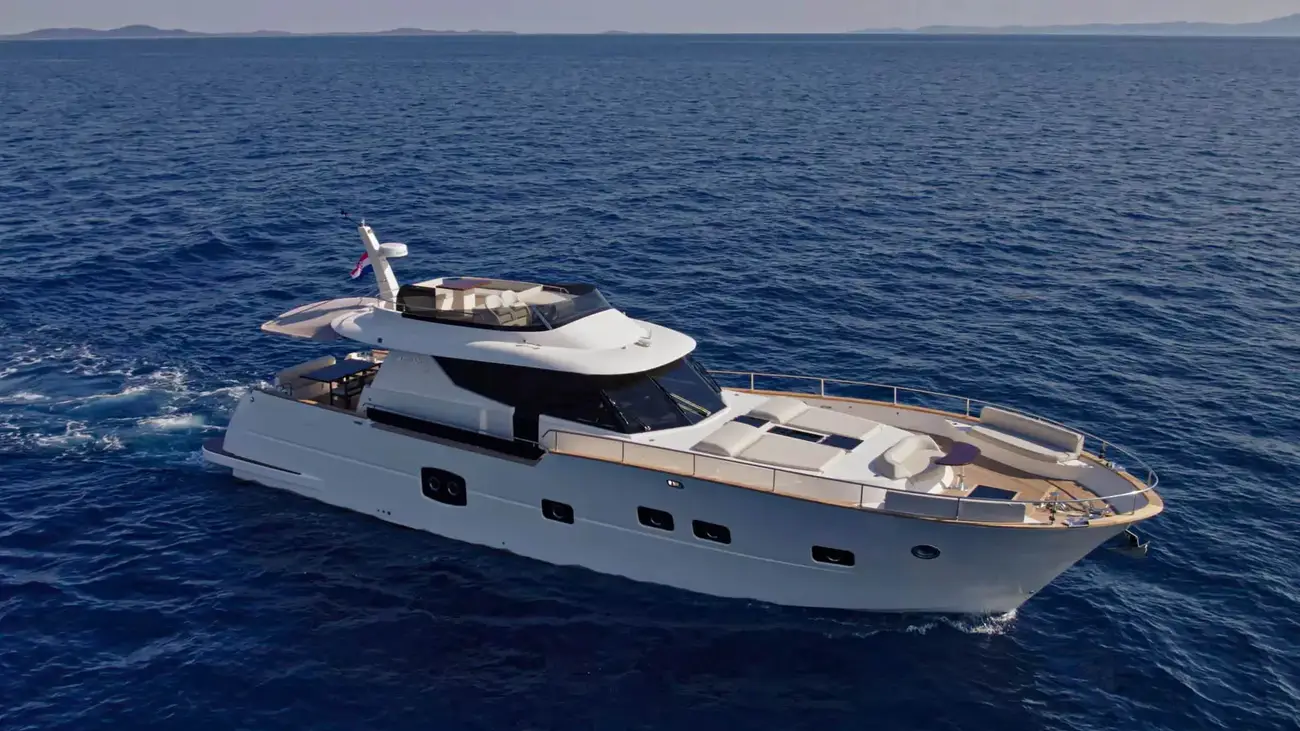

The MY-70F Fly "Panta Rei" is a beautifully maintained 2022 Monachus yacht, combining elegant Mediterranean design with comfortable long-range cruising capabilities. Built in Croatia by Monachus Yachts, this 70-foot flybridge model offers spacious indoor and outdoor living areas, four guest cabins, a crew cabin, and reliable twin Volvo IPS propulsion.

With immediate availability in Split and only 700 engine hours, "Panta Rei" represents a rare opportunity to acquire a boutique Monachus without waiting twelve to eighteen months for a new build slot. Ideal for private Mediterranean cruising, family ownership, or luxury charter operations.

TECHNICAL

ENGINES

• 2 x VOLVO D13 - IPS 1200
  • DPS-dynamic positioning system
  • Self-leveling interceptors
  • IPS maneuvering joysticks

DECK FITTINGS

• Teak-laid on the complete deck and flybridge
• Self-stowing 50kg/110lbs Delta anchor with 100m of chain
• Reversible electric anchor winch with controls on foredeck, helm position and
  flybridge
• Stainless steel cleats 4 pairs
• Stainless steel fairleads and handrails
• Twin electric-powered sternline mooring winches
• Freshwater deck/anchor wash
• Foredeck seating and sunbathing area with mattresses
• LED deck level lighting
• Besenzoni 4.5m hydraulic letterbox passerelle
• Side access door in cockpit

COCKPIT

• Outdoor sofa with fixed table
• Three armchairs for cockpit
• Twin transom gates leading to bathing platform
• Electro-hydraulic raise/lower bathing platform
• Folding ladder on the bathing platform
• Hot and cold water shower on the bathing platform
• Transom door to dinghy garage/storage area
• Two hatches with gas spring for entrance in the engine room
• Locker housing 220V shore support inlet
• Sun awning on self standing stainless steel construction

• Docking joystick



FLYBRIDGE

• Stainless steel and teak wood stairs from the outdoor cockpit to fly
• Teak floor on flybridge
• Inlet hatch to fly-bridge
• Stainless steel railing
• Tinted glass wind deflector
• Anchor light mast
• Control levers for engines, maneuvering joystick
• Garmin-Volvo 21'' display NMEA 2000 networked for navigation data, engine
  data, autopilot, alarms and control switches, VHF/RT, STD
• Large seating/sunbathing area with fixed table
• Twin adjustable helm seats
• Drawer fridge for drinks
• Music set with waterproof speakers
• LED ambient lights

• Bimini top on Flybridge



POWER AND DRIVE SYSTEM

• 3 blade dup-props in nickel aluminum bronze
• Bow thruster 270kgf with joystick control on each helmsman position
• Power-assisted electro-hydraulic steering system with hydraulic back-up
• Electronic engine and gear shift controls on fly bridge and main deck helmsman
  position
• IPS system with maneuvering joystick on 3 position
• Volvo DPS - Dynamic position system, automatically keeps the boat in the
  desired position longitudinally and transversely
• Volvo IPS self-leveling interceptors automatically keeps the boat in the level
  during navigation
• Engine room extractor fan with electronic time delay

ELECTRICAL SYSTEMS

• 24V
• 4 x heavy duty batteries for engine start
• 6 x heavy duty service batteries
• 120 amp battery charger 230 to 24V, charges both banks of batteries via an
  automatic switch charging system
• Inverter 24V to 230V, 8kW servicing all 230V electric devices
• 30 amp battery charger 230 to 12V charging generator battery
• Galvanic isolator to prevent electrolytic corrosion
• Garmin EmpirBus system with NMEA 2000 network incorporating all onboard
  electrical and electronic devices in smart communication circle

• Remote battery master switches with control switch at main panel LED lighting throughout



220/240V SYSTEM

• 18KW diesel generator in sound shield with water cooled specially silenced
  exhaust
• 63 amp shore support inlet
• Earth leakage safety trip, polarity check system, circuit breakers on all circuits

• Power points in all areas



FUEL SYSTEM

• Fuel tanks (GRP-epoxy) with interconnection system giving 951 US gal/3600 l
  capacity
• Fuel filters on port and startboard side
• High capacity duplex fuel filters/water traps with audible and visual fuel
  contamination warning system, STD
• Remote fuel isolation controls at helm position

WATER SYSTEM

• 1.200L/317 US gal plus 19 US gal/73l hot water boiler, heated by engines and
  230V immersion heater
• High capacity water supply hydrophore
• Water level gauge
• Deck filter

• Electric freshwater WC system



SAFETY & DOCKING

• Electric bilge pumps with auto. level switch and indicators on the command
  console
• High capacity manual bilge pump with valve system and suction points
• Automatic override fire extinguishers in engine room
• Hand-operated fire extinguishers in all cabins, galley and lower helm (6)
• Carbon monoxide detector in each separate room
• Mooring line x4
• Fender x8

• Life raft for 12 pax (located on flybridge)



INTERIOR

Helm position

• Adjustable leather helmans seat
• Control levers for engines, maneuvering joystick
• Three Garmin 16'' displays conected in NMEA 2000 network for:
  • Navigation data
  • Engine data
  • Autopilot
  • Radar
  • Alarms
  • Control switches
  • VHF/RT
• 24V and 230V control panel
• 12V outlet

• Red night lighting



DECK SALOON

• Sliding doors to aft cockpit with opening galley window
• Electro-hydraulic stainless steel door to the side deck
• U-shaped seating area with (adjustable dining or club) table
• Three door commode with shelves
• Entertainment center incorporating UHD LED TV on electric raise/lowermechanism and audio system with streaming capability and Blu-ray player
  • connected to speakers
• Sideboard unit with
  • Bottle & glass storage
  • Refrigerator
  • Icemaker
• Access to lower deck


GALLEY

• 4-zone ceramic hob
• Combination convection oven,
• Stainless sink with mixer tab
• Full-height fridge/freezer
• Dishwasher
• Storage cupboards, drawers and lockers

Accommodation

• All cabins and bathrooms feature opening portholes
• Each cabin is provided with its own AC unit mounted in the engine room and
  with a control panel in the cabin
• All cabins featurtse 230V power points and USB plugs
• In all cabins ceiling lighting and LED ambient lighting with the possibility of
  dimming
• All mattresses with three pressure zones
• All bathrooms feature full shower stalls, vacum-electric freshwater toilets,
  extractor fan and 230V shaver points
• A combination washer/dryer is fitted in the stateroom lobby or in the engine
  room

Owners Stateroom

• Large double bed with storage below
• Each bedside is provided with a nightstan
• Twin wardrobes with shelves and hanging space
• Dressing table with drawers
• Sofa or two upholstered chairs with PC table in middle
• UHD LED TV, audio system with speakers

• En suite bathroom



VIP Guest Cabin

• Large double bed with storage below
• Each bedside is provided with a nightstand
• Twin wardrobes with shelves and hanging space
• Both side commodes with shelves and drawers
• Deck hatch
• En suite bathroom

Starboard Guest Cabin

•  Two single beds with storage below
• Wardrobe with shelves
• Night stand
• En suite bathroom
• Port guest cabin
• Two single beds (one bunk bed) with storage below
• Wardrobe with shelves
• En suite bathroom

Bow cabin

• Two single bads (one bunk bed) with storage below
• Wardrobe with shelves
• En suite bathroom with shower
• Interior finish
• Furniture in American walnut wood with a satin gloss finish
• In all bathrooms ceramic floor surfaces and shower cabins walls, quartz marble
  worktop
• Solid marble worktop in galley
• American cherry wood floor in saloon, galley and lower deck coridor
• Choice of high quality carpets and upholstery fabric from extensive range for
  cabins
• Blinds and sun screens to all windows and portholes

• Interior details handmade from solid American cherry wood
